Authentication mod for Minecraft 1.7.10.

# Wawel Auth

logo

Authentication mod for Minecraft 1.7.10. Use Microsoft or any Yggdrasil-compatible provider, or run your own auth server alongside the game server. Includes modern and HD skins, animated capes, and optional 3D skin layers.

Some highlights of what Wawel Auth allows you to do:

Login into any Yggdrasil-compatible provider on the client (Microsoft, ely.by, drasl, …)
Bind accounts to servers
Host an account and skin provider directly on the game server
Allow any Yggdrasil-compatible provider to join your server
Modern and HD skin support
Animated capes for Wawel Auth accounts
3D skin layers implementation
Admin web UI for server-side management

Wawel Auth does not need to be installed on the client, nor on the server to benefit from a lot of features.

You can setup a server that allows Microsoft and ely.by users, without clients having to do anything special.

Clients can also benefit from account management, modern skins, and 3d skin layers, even if a server doesn’t run Wawel Auth.

screen1

forge

Dependencies

UniMixins
FentLib
ModularUI2 (Client only)

Client Setup And Use

Wawel Auth stores a small Minecraft instance-bound config file under `config/wawelauth/local.json`.

Most other settings, however, are shared across all Minecraft instances (can be disabled using `useOsConfigDir`).

Those settings live in files stored under the following locations:

Windows: `%APPDATA%/wawelauth/`
macOS: `~/Library/Application Support/wawelauth/`
Linux: `$XDG_DATA_HOME/wawelauth/` or `~/.local/share/wawelauth/`

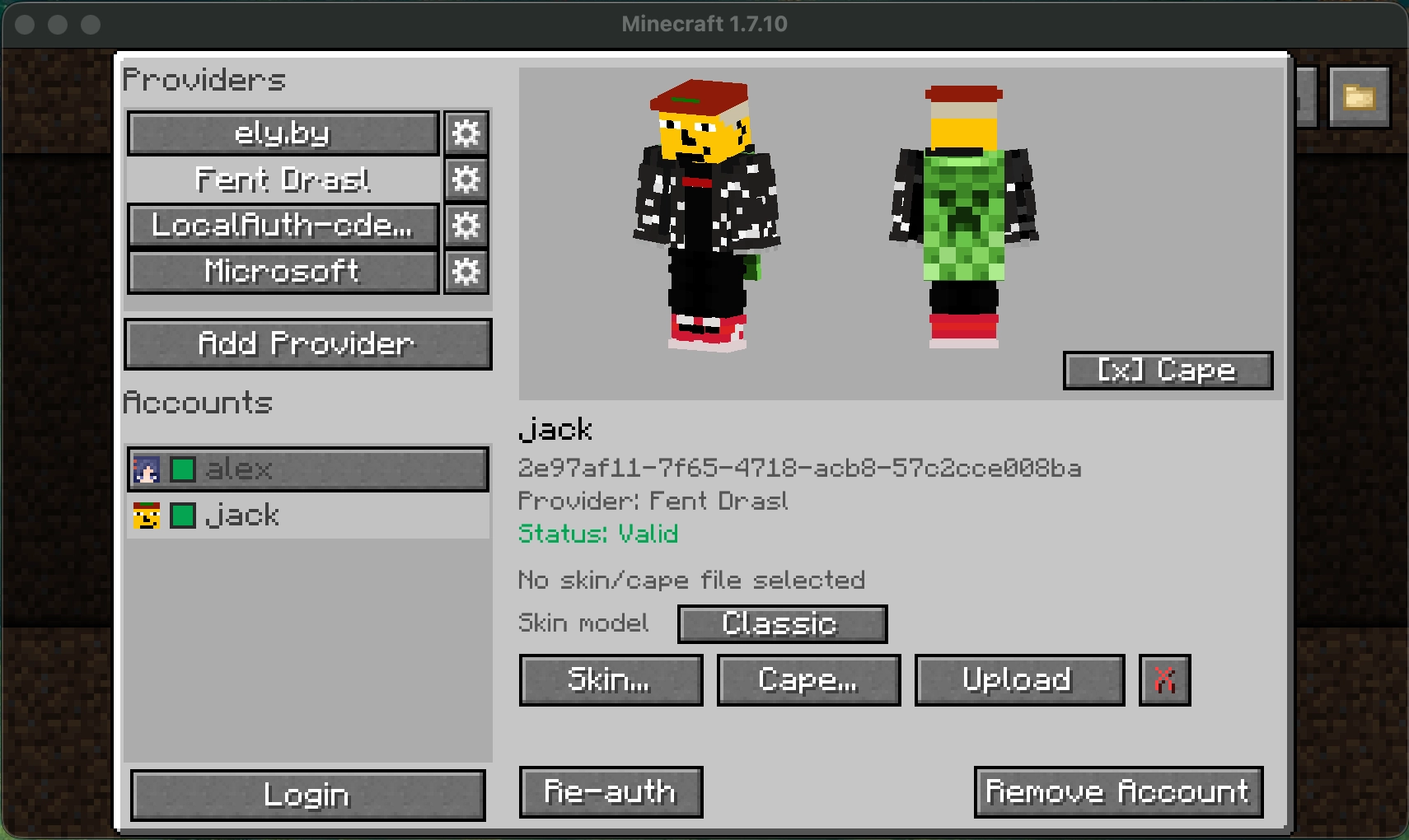

The main menu is opened with the `Auth` button in the multiplayer screen.

From there, you can add auth providers, and accounts.

Some things of note:

Microsoft, Ely.by, and LittleSkin providers are built in.
Any Yggdrasil / authlib-injector provider can be added by URL.
The `Manage Local Auth…` button is the quickest way to use local accounts on a Wawel Auth server.
Adding the same local server manually as a normal provider is also supported.
Skin management buttons can be suppressed per provider through `client.json`, in the case a provider does not provide these functions. This is purely cosmetic.

The following options let you configure this:

`disableSkinUpload`
`disableCapeUpload`
`disableTextureReset`

The `disable*` lists are regexes matched against provider name or API root.

Animated capes are only supported by Wawel Auth servers, and are in the `minecraftcapes.net` format.

> [!NOTE]

> You can also drag and drop skins and capes, if using Java 17+.

Server Setup And Use

Files and locations

Dedicated servers always use `config/wawelauth/` to store their config, and state data
That state directory contains the SQLite database, generated keys, and stored textures

> [!WARNING]

> * Your private server key is sensitive information, never share it.

> * It is important to not change your server keys, if not absolutely necessary. Wawel Auth client users will need to trust the key again, and authlib-injector users will refuse to connect to a server whose public key has changed.

Example local-only setup

`server.json`

{
  "wawelAuthEnabled": true,
  "serverName": "My WawelAuth Server",
  "publicBaseUrl": "auth.example.com:25565",
  "apiRoot": "auth",
  "admin": {
    "enabled": true,
    "token": "strong_password_best_if_randomly_generated"
  }
}

set `online-mode=true` in `server.properties`
set `publicBaseUrl` to the real public base URL clients use
leave `apiRoot` as a relative path such as `auth`
set an admin token through `server.admin.token` or `WAWELAUTH_ADMIN_TOKEN`
restart the server

Notes:

if `publicBaseUrl` has no scheme, Wawel Auth assumes `http://`
with the example above, the auth API is published at `http://auth.example.com:25565/auth`
on dedicated servers, Wawel Auth now hard-stops before world load if `online-mode=false`, `publicBaseUrl` is missing, or `apiRoot` is configured as a full URL
for CI smoke tests only, `WAWELAUTH_CI=true` or `GITHUB_ACTIONS=true` bypasses the missing-`publicBaseUrl` hard stop

Important server settings

`registration.policy`: `OPEN`, `INVITE_ONLY`, `CLOSED`
`textures`: max skin / cape dimensions, file limits, animated cape limits
`http`: HTTP read timeout and max request body size
`admin`: web UI enable flag, login token, session TTL

Admin web UI

If `server.admin.enabled=true`, the admin UI is available at:

`http://your-host:your-port/admin`

It manages users, textures, invites, whitelist, ops, `server.json`, and `server.properties`.

Fallback providers

Fallback providers are defined in `fallback-servers.json` and checked in order.

{
  "fallbackServers": [
    ...
  ]
}

> [!WARNING]

> `name` must not contain whitespaces.

> [!TIP]

> `name` is used in provider-scoped commands such as `/op player@provider`.

Microsoft fallback example

{
  "name": "mojang",
  "sessionServerUrl": "https://sessionserver.mojang.com",
  "accountUrl": "https://authserver.mojang.com",
  "servicesUrl": "https://api.minecraftservices.com",
  "skinDomains": [
    ".minecraft.net",
    ".mojang.com"
  ],
  "cacheTtlSeconds": 300
}

Ely.by fallback example

{
  "name": "ely.by",
  "sessionServerUrl": "https://authserver.ely.by/api/authlib-injector/sessionserver",
  "accountUrl": "https://authserver.ely.by/api",
  "servicesUrl": "https://authserver.ely.by/api/authlib-injector/minecraftservices",
  "skinDomains": [
    "ely.by",
    ".ely.by"
  ],
  "cacheTtlSeconds": 300
}

LittleSkin fallback example

{
  "enabled": true,
  "name": "littleskin",
  "apiRoot": "https://littleskin.cn/api/yggdrasil",
  "sessionServerUrl": "https://littleskin.cn/api/yggdrasil/sessionserver",
  "accountUrl": "https://littleskin.cn/api/yggdrasil/authserver",
  "servicesUrl": "https://littleskin.cn/api/yggdrasil",
  "signaturePublicKeyBase64": "",
  "skinDomains": [
    "littleskin.cn"
  ],
  "cacheTtlSeconds": 300
}

Commands

`/wawelauth`

`/wawelauth register `
`/wawelauth invite create [uses|unlimited]`
`/wawelauth invite list`
`/wawelauth invite delete `
`/wawelauth invite purge`
`/wawelauth test`

Provider-qualified whitelist and op commands

`/whitelist add @`
`/whitelist remove @`
`/op @`
`/deop @`

`` is either a `fallbackServers[].name` or one of the local aliases: `local`, `localauth`, `wawelauth`, `self`.

Regular whitelist and op commands are disabled.

> [!WARNING]

> Plain authlib-injector clients (or vanilla) can authenticate against a Wawel Auth server, but mixed-provider skin handling only works if the client and server run Wawel Auth.

Interoperability Notes

Building

./gradlew build

Credits

Skin layer implementation inspired by last MIT commit of 3D Skin Layers Mod
Catalogue-Vintage for folder icon and system-open inspiration
GT:NH buildscript
Background image

License

`LGPLv3 + SNEED`

Buy me some creatine

ko-fi.com
Monero: `893tQ56jWt7czBsqAGPq8J5BDnYVCg2tvKpvwTcMY1LS79iDabopdxoUzNLEZtRTH4ewAcKLJ4DM4V41fvrJGHgeKArxwmJ`
